Description

Conceptualization, design and fabrication of a personal companion lamp.

Gated product development process with iterative improvements in design and manufacturability.

Fabrication of multiple units based on standardized processes emulating mass manufacturing.

Lumi Light

Contributions

Product definition and design
CAD models and drawings
Product Specifications documentation and testing
Resin casting and silicone molding
3D printing

Identification

This project was focused at observing the product development process, gated project management and design for manufacturability.

The assignment constraints pushed for:

Creating a simple electromechanical product with 5-10 BoM components
Usefulness in day-to-day life
Utilizing different manufacturing processes
Overall marketable product cost < $20

Ideation

The idea of creating a lamp instantly clicked for our team. It fit the bill for most of the criteria of the project, and would help us carry out something useful and lovable at the end of the assignment.

Several concepts were created based on form-factor and actuation mechanism for the lamp. Based on priorities, the team gravitated to the following features:

Easy to switch on-off: The lamp was supposed to be operated in low light or pitch black darkness
Configurable lighting: Mood setting and ambience
Soft, amicable form-factor: For an intimate setting and use
Glow in the Dark: A useful feature for locating the lamp when used in darkness
Small and easy to hold/ carry: The lamp would be designed to be a companion article
Rechargeable: An inbuilt battery would enable several more use-cases than an active cable

Concept Sketches

Initial Assembly

(Helped plan for and target development)

Prototyping and EVT

The product idea with a soft top and easy to actuate design was adopted. What followed was design and development in the following aspects:

Actuation mechanism: Tested mic based switch, vibration sensors
Form-factor and sizing
Mold-making and silicone top creation

EVT Prototype

Sampling Silicone Grades for Soft Top

EVT electrical Layout

Mold Printing for Soft Top

Mold Design Evolution

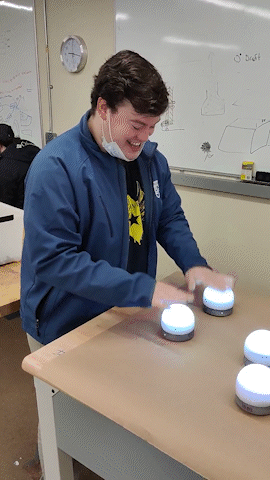

EVT Prototype Test
2 Part Mold with core
Locating features for assembly during cure

Improved surface finish with SLA print
Changed soft top design to interference fit
Improved locating features for stability in part thickness

Final Mold

Integrated pouring spouts for cleaner part seam
Surface finished to desired grit
Finalized part dimensions and interference

Final Design

Final CAD

Packaging Design and Render

Lessons Learnt

Moving with high risk items first: we struggled with defining the best actuating mechanism and continued to optimize for and iterate with different vibration sensors and mics which had design implications
Failing fast: Early iterative investigation of silicone soft top molding among drip molding, coreless molding and inside-out molding were helpful in identifying quality and performance risks
Graveyard of failed attempts: As an engineer it is important to address the existence of failed methods and prototypes.
Significance of standardization of process
